Customize MX Anywhere 3 with LogiOps [ArchLinux]

logiops is an unofficial driver for Logitech mice and keyboard (Currently compatible only with HID++ >2.0 devices.)

In this article, we will try to customize Logitech MX Anywhere 3 Wireless Mouse buttons using logiops, as a replace solution for Logitech Options which support Windows & Mac only.

Install logiops from AUR

1. Dependencies:

• This project requires C++14 complier, cmake, libevdev, libudev and libconfig.
• Install dependencies:

    yay -S cmake libevdev libconfig pkgconf


• Simply install logiops with Arch User Repository:

    yay -S logiops-git


  2. Start using logiops

• Start logiops daemon with systemd:

    sudo systemctl start logid


• Set daemon to start at boot:

    sudo systemctl enable logid


Custom keys binding

1. Useful commands:

• Listing for connected device:

    sudo logid -v


• Debug config file (Highly recommend using when config file changed, by default is /etc/logid.cfg)

    sudo logid -v -c /etc/logid.cfg


  2. Remappable Keys & Features

  ➜ sudo logid -v
  [DEBUG] Unsupported device /dev/hidraw0 ignored
  [DEBUG] Unsupported device /dev/hidraw1 ignored
  [DEBUG] Unsupported device /dev/hidraw2 ignored
  [INFO] Device found: MX Anywhere 3 on /dev/hidraw3:255
  [DEBUG] /dev/hidraw3:255 remappable buttons:
  [DEBUG] CID  | reprog? | fn key? | mouse key? | gesture support?
  [DEBUG] 0x50 |         |         | YES        |
  [DEBUG] 0x51 |         |         | YES        |
  [DEBUG] 0x52 | YES     |         | YES        | YES
  [DEBUG] 0x53 | YES     |         | YES        | YES
  [DEBUG] 0x56 | YES     |         | YES        | YES
  [DEBUG] 0xc4 | YES     |         | YES        | YES
  [DEBUG] 0xd7 | YES     |         |            | YES

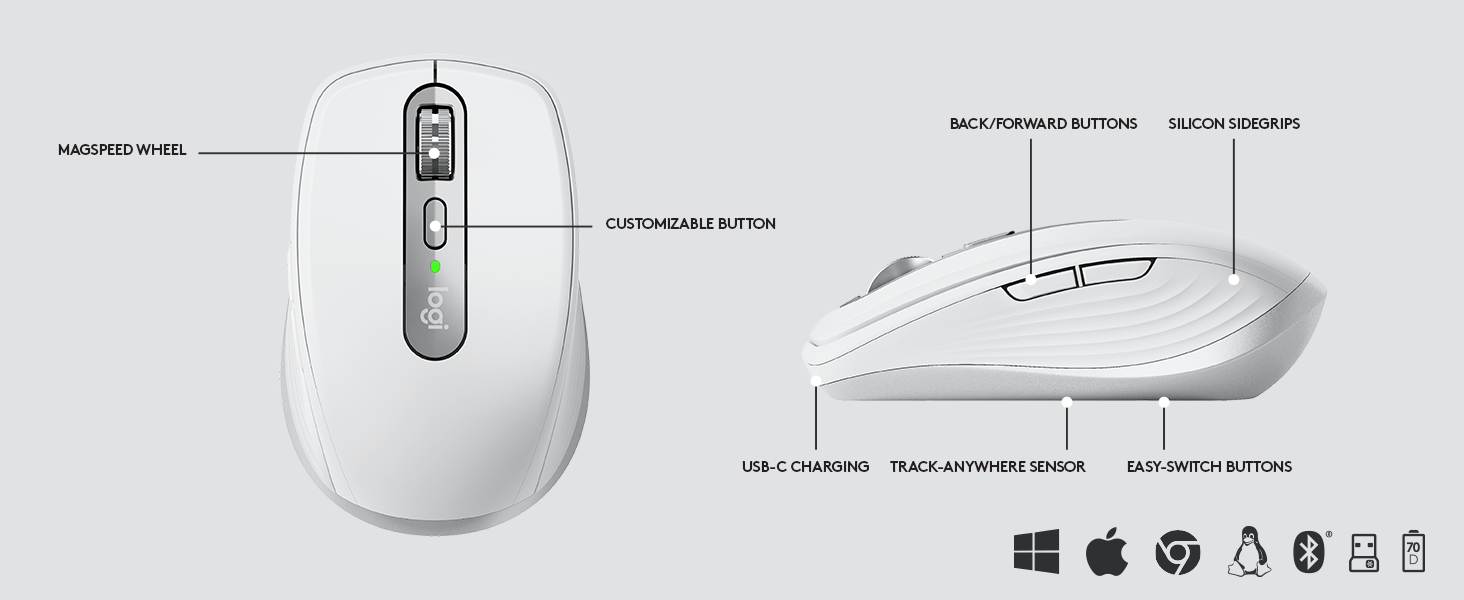

MX Anywhere 3 Button’s CID table:

Buttons	CID
Magspeed Wheel	0x52
Mode Shift Button	0xc4
Back (thumb button)	0x53
Forward (thumb btn)	0x56

All these 4 keys are gestures supported, we’re going to customize them.
Other 3 buttons are Mouse click buttons (0x50 and 0x51) and Devices Swicht Button (0xd7), just leave them alone for not getting fucked.

3. Customize configurations

• Smartshift configurations:

  smartshift: {
    on: true;
    threshold: 50;
  };


• High Resolution Scroll configurations:

  hiresscroll: {
    hires: true;
    invert: true;
    target: true;
       up: {
            mode: "Axis";
            axis: "REL_WHEEL_HI_RES";
            axis_multiplier: -1;
        },
        down: {
            mode: "Axis";
            axis: "REL_WHEEL_HI_RES";
            axis_multiplier: 1;
        }
  };


• Magspeed Wheel Button Customize:

    buttons: (
        {
            cid: 0x52;
            action =
            {
                type: "Gestures";
                gestures: (
                    {
                        direction: "Left";
                        mode: "OnInterval";
                        interval: 10;
                        action =
                        {
                            type: "Keypress";
                            keys: ["KEY_VOLUMEDOWN"];
                        };
                    },
                    {
                        direction: "Right";
                        mode: "OnInterval";
                        interval: 10;
                        action =
                        {
                            type: "Keypress";
                            keys: ["KEY_VOLUMEUP"];
                        };
                    },
                    {
                        direction: "None"
                        mode: "OnRelease";
                        action =
                        {
                            type: "Keypress";
                            keys: ["BTN_MIDDLE"];
                        }
                    }
                );
            };
        }


  Usages:

  • Hold down button and move to trigger gesture:
    • Left: Volume -
    • Right: Volume +
    • Click: Middle Mouse ```
• Mode shift button:

         {
            cid: 0xc4;
            action =
            {
                type: "Gestures";
                gestures: (
                    {
                        direction: "None";
                        mode: "OnRelease";
                        action = {
                            type: "CycleDPI";
                            dpis: [400, 1600, 2800];
                        }
                    }
                );
            }
        }


• Thumb button

        {
            cid: 0x53;
            action =
            {
                type: "Keypress";
                keys: ["KEY_BACK"];
            };
        },
        {
            cid: 0x56;
            action =
            {
                type: "Keypress";
                keys: ["KEY_FORWARD"];
            };
    }
    );
  }
  );


References

• PixlOne/logiops
• Logitech Archwiki
• Linux event codes
